High Power Antennas

High Power Microwave Patch AntennaCellencor now proudly offers custom and off the shelf high power patch antennas for our customers doing reactor vessels and custom applicators. These are especially useful in R&D applications.

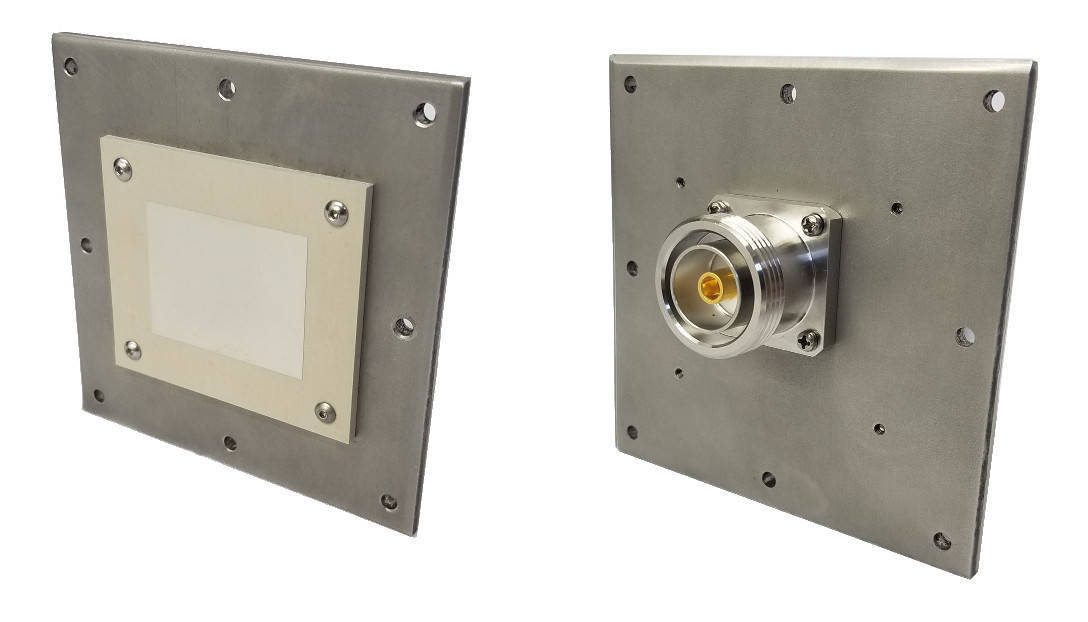

The patch antenna pictured was originally created out of necessity as Cellencor could not find readily available, high power S-band antennas at an economical price to be used with our PrecisePower™ family of solid-state generators.

Patch antennas offer some great benefits for our customers such as a small footprint and a slim profile which doesn’t protrude into the microwave cavity and interfere in the heating process.

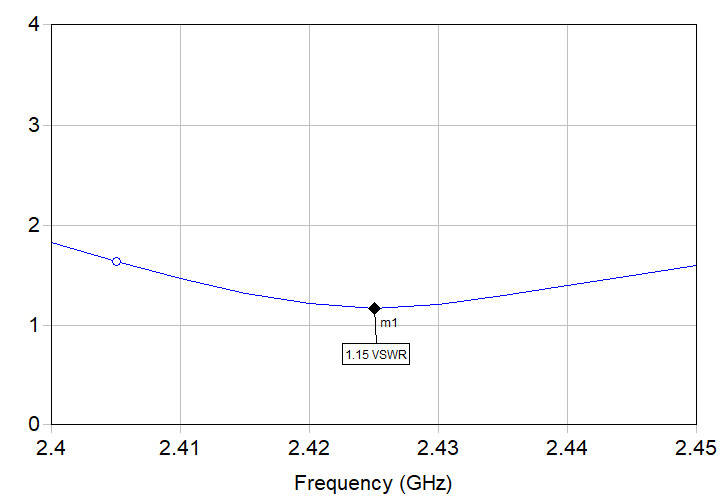

Microwave Patch Antenna VSWR

SPECIFICATIONS

  • High power handling (up to 1200 watts)
  • Wideband (>200 MHz SWR bandwidth)
  • Low center VSWR (as low as 1.1)
  • Customizable target frequency
  • Linear or circularly polarized
  • Rugged construction to handle poorly matched cavities
  • 7/16 DIN or N connector





Contact Us Today!
